Home Products For-Professional Indoor Lighting LED Strip Light LED Strip Light 12V/24V
OVERVIEW
Product description
Product data sheet
Strip-Light-12V-24V
Strip-Light-12V-24V
16558665799487427

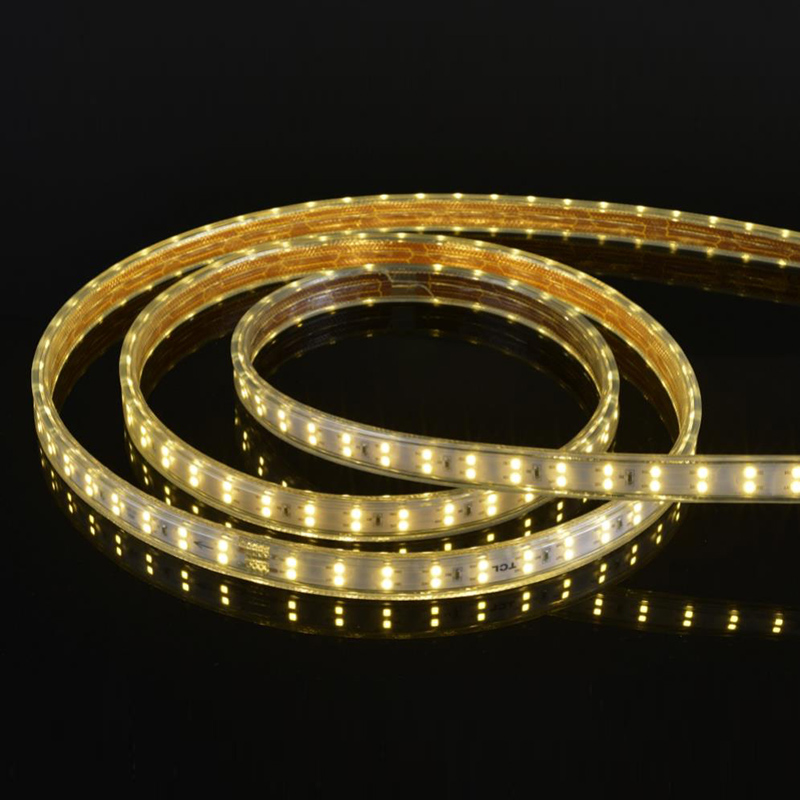

LED Strip Light 12V/24V 12W/14W/16W
Code No.
Product benefits

Features

- Soft, can be curved as the wire curl, suitable for varieties ofdecoration sites

- lt can be cut freely according to the actual decoration needs

-Chips and circuit are completely wrapped in flexible plastic, at good insulation

-Cut as per mark on lamp


Application

- Indoor and outdoor decoration

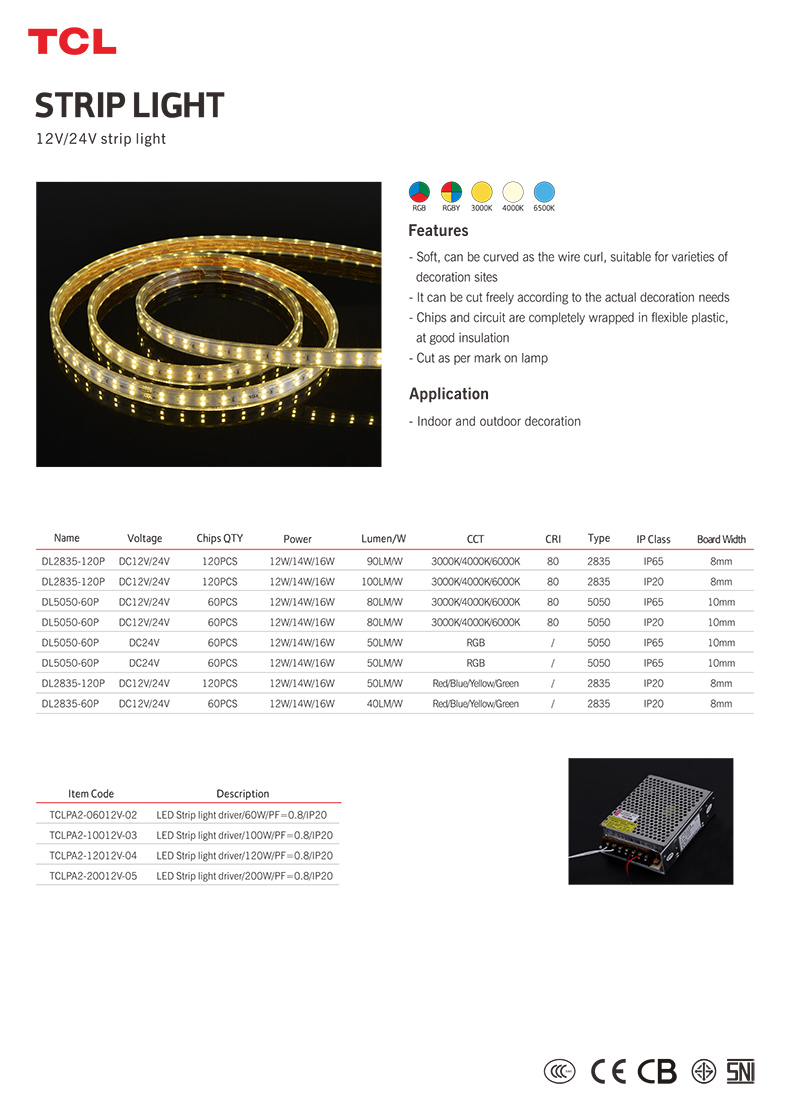

Product data sheet
PRODUCT DETAILS
TECHNICAL DATA AND BENEFITS

Features

- Soft, can be curved as the wire curl, suitable for varieties ofdecoration sites

- lt can be cut freely according to the actual decoration needs

-Chips and circuit are completely wrapped in flexible plastic, at good insulation

-Cut as per mark on lamp


Application

- Indoor and outdoor decoration



NameVoltagePowerLumen/WCCTCRITypeIP ClassBoard WidthChips Qty
DL2835-120P

DC12V/24V

12W/14W/16W

90LM/W

3000K/4000K/6000K802835IP658mm120PCS
DL2835-120P

DC12V/24V

12W/14W/16W100LM/W3000K/4000K/6000K802838IP208mm120PCS
DL5050-60P

DC12V/24V

12W/14W/16W80LM/W3000K/4000K/6000K805050IP6510mm60PCS
DL5050-60P

DC12V/24

12W/14W/16W80LM/W3000K/4000K/6000K805050IP2010mm60PCS
DL5050-60P

DC24V

12W/14W/16W50LM/WRGB/5050IP6510mm60PCS
DL5050-60PDC24V12W/14W/16W50LM/WRGB/5050IP6510mm60PCS
DL2835-120PDC12V/2412W/14W/16W50LM/W

Red/Blue/Yellow/Green

/2838IP208mm120PCS
DL2835-60PDC12V/2412W/14W/16W40LM/W

Red/Blue/Yellow/Green

/2838IP208mm60PCS

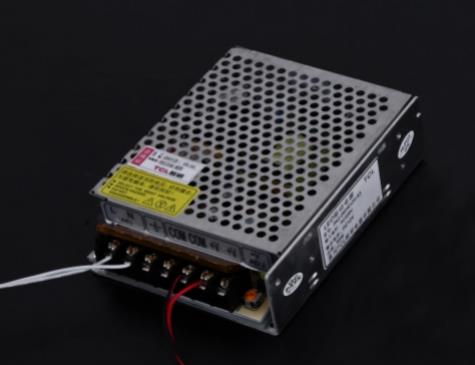

strip driver.jpg

ltem CodeDescription
TCLPA2-06012V-02LED Strip light driver/60W/PF=0.8/P20
TCLPA2-10012V-03LED Strip light driver/100W/PF=0.8/1P20
TCLPA2-12012V-04LED Strip light driver/120W/PF=0.8/P20
TCLPA2-20012V-05LED Strip light driver/200W/PF=0.8/P20



LED Strip Light 12V 24V-1.jpg
